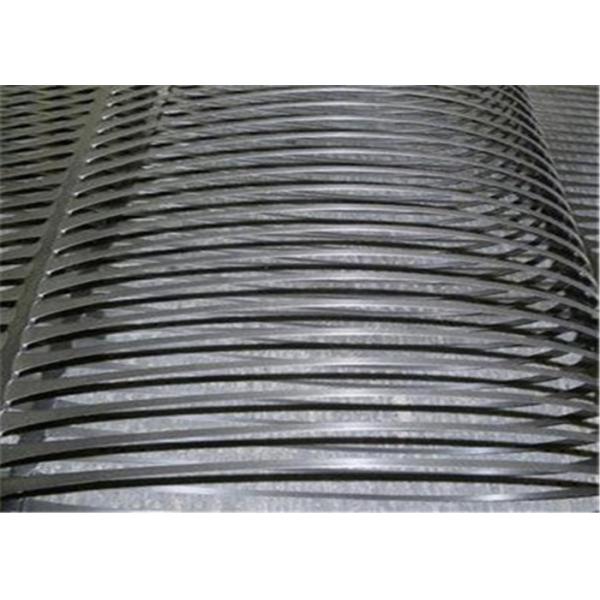

Soil Reinforcement High-Density Polypropylene Uniaxial Plastic Geogrid
Uniaxial Plastic Geogrid Introduction
Plastic uniaxial geogrid is manufactured from plastic materials which may be high-density polypropylene or high-density polyethylene (HDPE) resins by the hot extruding process to make the resins into thin plates, the plates are punched into the regular holes for the formation of desired grids, and then the punching patterns are stretched longitudinally into the desired meshes to develop designed tensile strength.
Uniaxial Plastic Geogrid Specification
| Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
| Tensile Strength (kN/m) | 60 | 80 | 110 | 150 | 260 | 300 |
| Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
| Strength at 2% Elongation (≥kN/m) | 17 | 26 | 32 | 45 | 94 | 105 |
| Strength at 5% Elongation (≥kN/m) | 35 | 48 | 64 | 90 | 185 | 195 |
| Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
| Roll Width (m) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
Uniaxial Plastic Geogrid Feature
1,High tensile strength
2,High tensile modulus
3,Higher load bearing capacity
4,Excellent soil stabilization
5,Good sub-base reinforcement
6,Heavy duty foundation support
7,Anti-corrosion, erosion control
Hengquan Metal Wire Mesh CO.,LTD
Hengquan company was established in 2013, has become one of the
leading and professional manufacture of many kinds of Geosynthetics
and wire mesh.
(such as:Geocell,Geotextile,Geomembrane, Geogrid,, ,Gabion
box,Welded wire mesh panel) in the world market. We got quality
control to make sure every product be in good quality, which can
make sure that any bad products will not sent to clients.
We got customers from American, Canada, Russia,Gemany and over 20 countries and enjoy good reputation.
Key points of construction
Construction site: it is required to compact and level, and remove the sharp protuberances.
Grid laying: on the flat and compacted site, the main stress direction (longitudinal) of the grid installed and laid shall be vertical to the axis of the embankment, and the laying shall be flat without wrinkles, and shall be tensioned as far as possible. The main stress direction of the laid grid is the full length without joint. The connection between the width and width can be bound and overlapped manually, and the lap width is not less than 10 cm. If the grid is more than two layers, the joints between layers shall be staggered. After large area laying, the flatness shall be adjusted as a whole. After filling a layer of soil and before rolling, the grid should be tensioned again by manual or machine tools, and the force should be uniform to make the grid in the soil in a straight stress state.
Selection of filler: the filler shall be selected according to the design requirements. It has been proved by practice that except frozen soil, swamp soil, domestic garbage, chalk soil and diatomite, they can be used as fillers. However, gravel soil and sand soil have stable mechanical properties and little affected by water content, so they should be preferred. The particle size of filler shall not be greater than 15cm, and the grading of filler shall be controlled to ensure the compaction weight.
Paving and compaction of filling materials: when the grid is laid and positioned, it shall be filled and covered in time, and the exposed time shall not exceed 48 hours. The flow operation method of laying and backfilling can also be adopted. First pave the filler at both ends, fix the grid, and then push forward to the middle. The rolling sequence is from two sides to the middle. During rolling, the roller can not directly contact with the reinforcement material, and the vehicle is not allowed to drive on it for fear of dislocation of reinforcement material. The compaction degree of each layer is 20-30cm. The compactness must meet the design requirements, which is also the key to the success or failure of reinforced soil engineering.
Waterproof and drainage measures: in reinforced soil engineering, the drainage treatment inside and outside the wall must be done well; the foot protection should be done to prevent erosion; the filtration and drainage measures should be set in the soil, and if necessary, the geotextile and permeable pipe (or blind ditch) should be set. Drainage shall be conducted in the way of dredging, which shall not be blocked, otherwise hidden dangers will occur.
|
|
